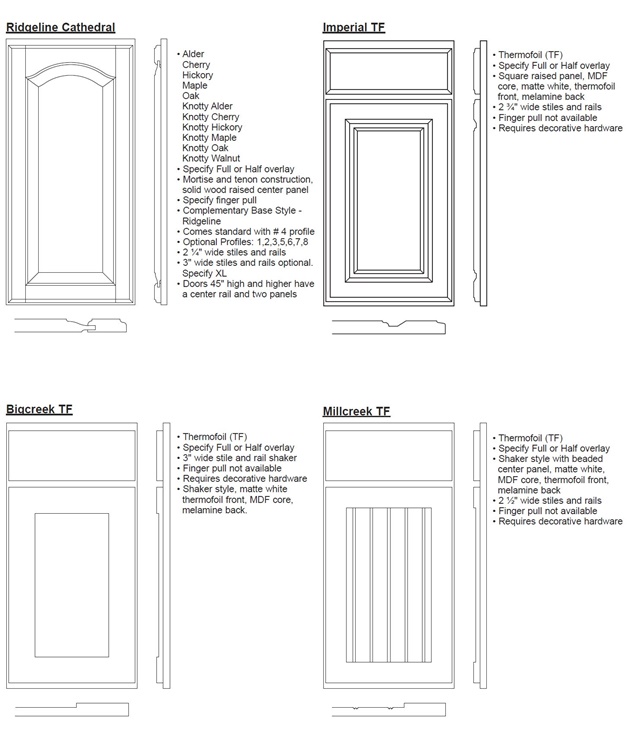

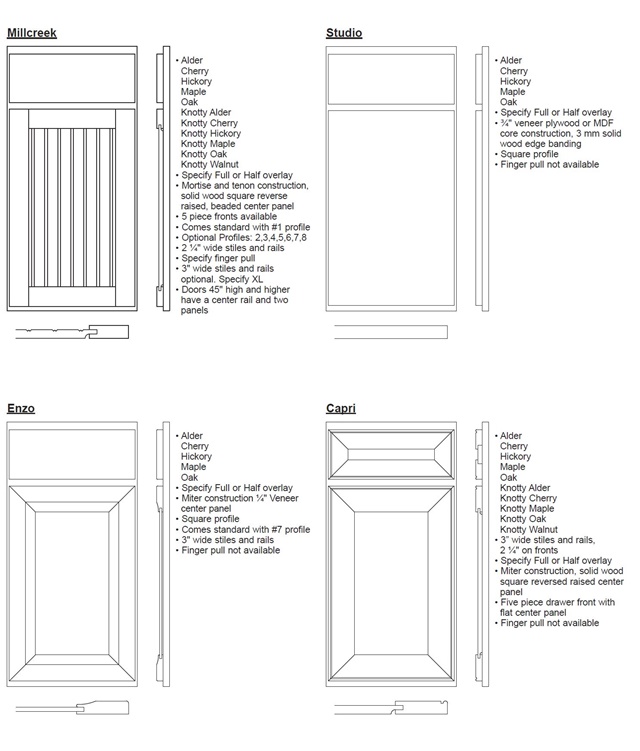

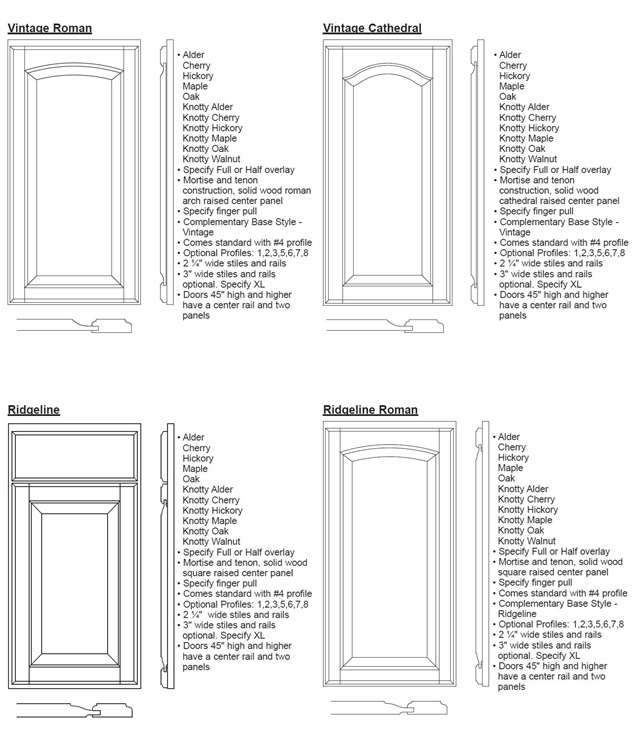

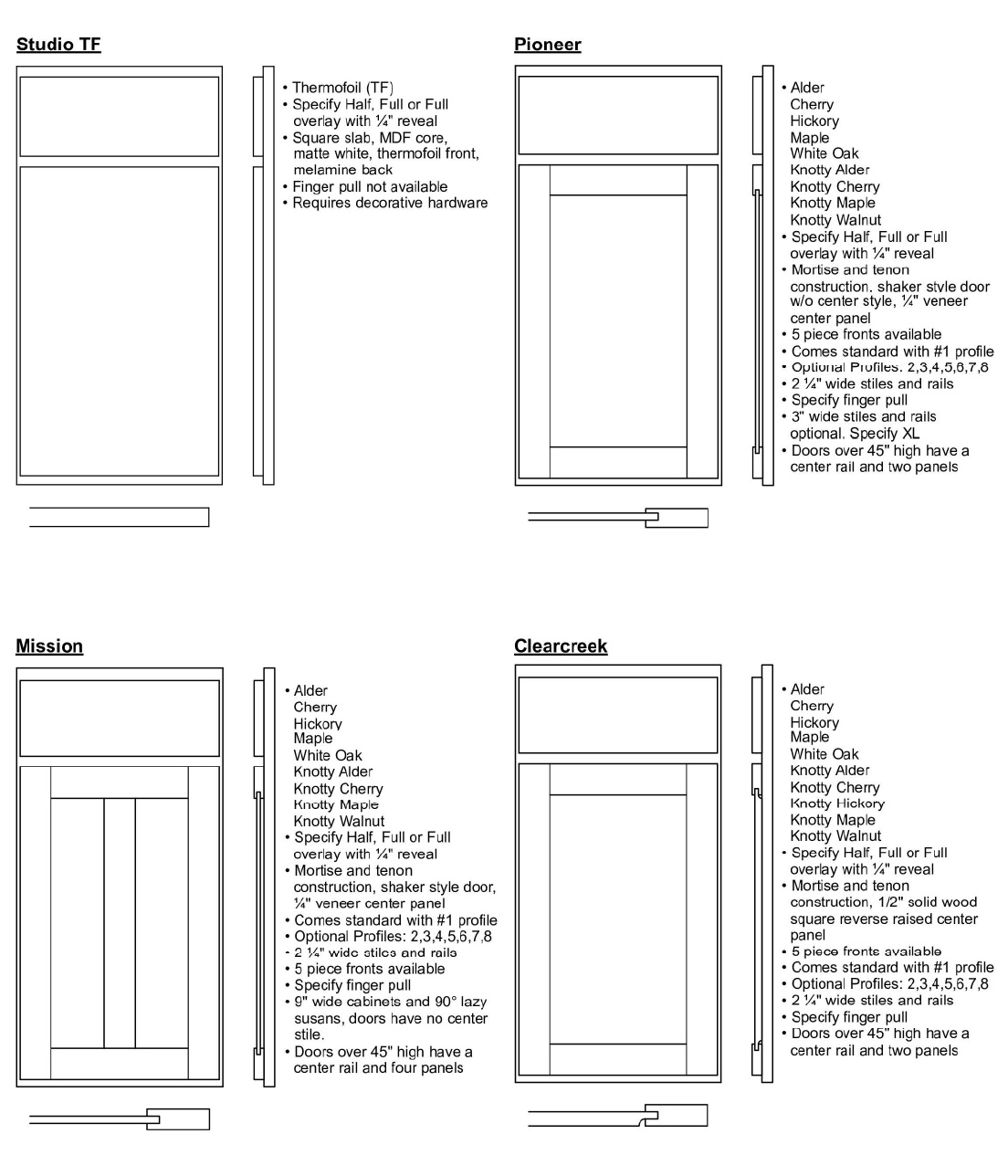

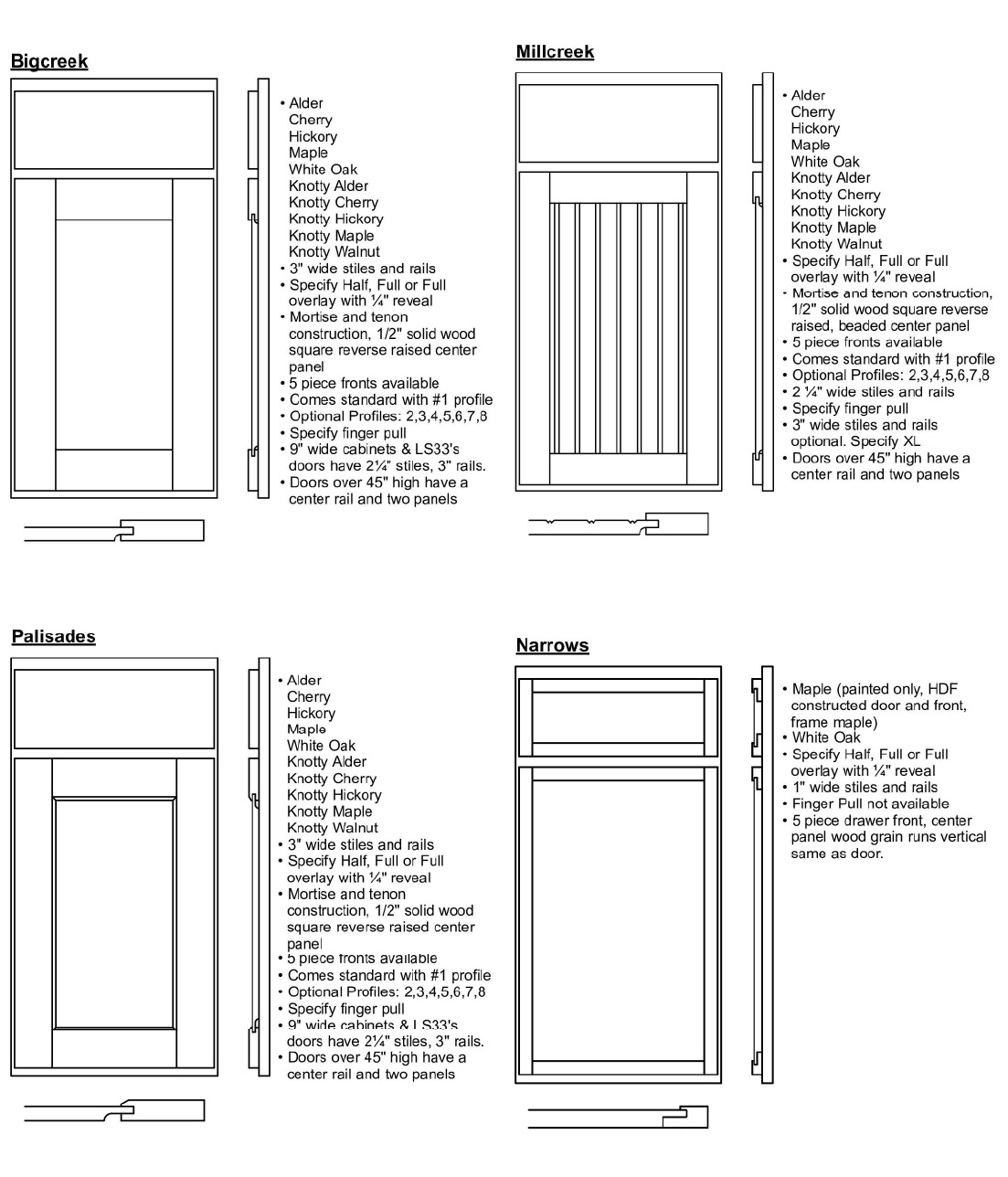

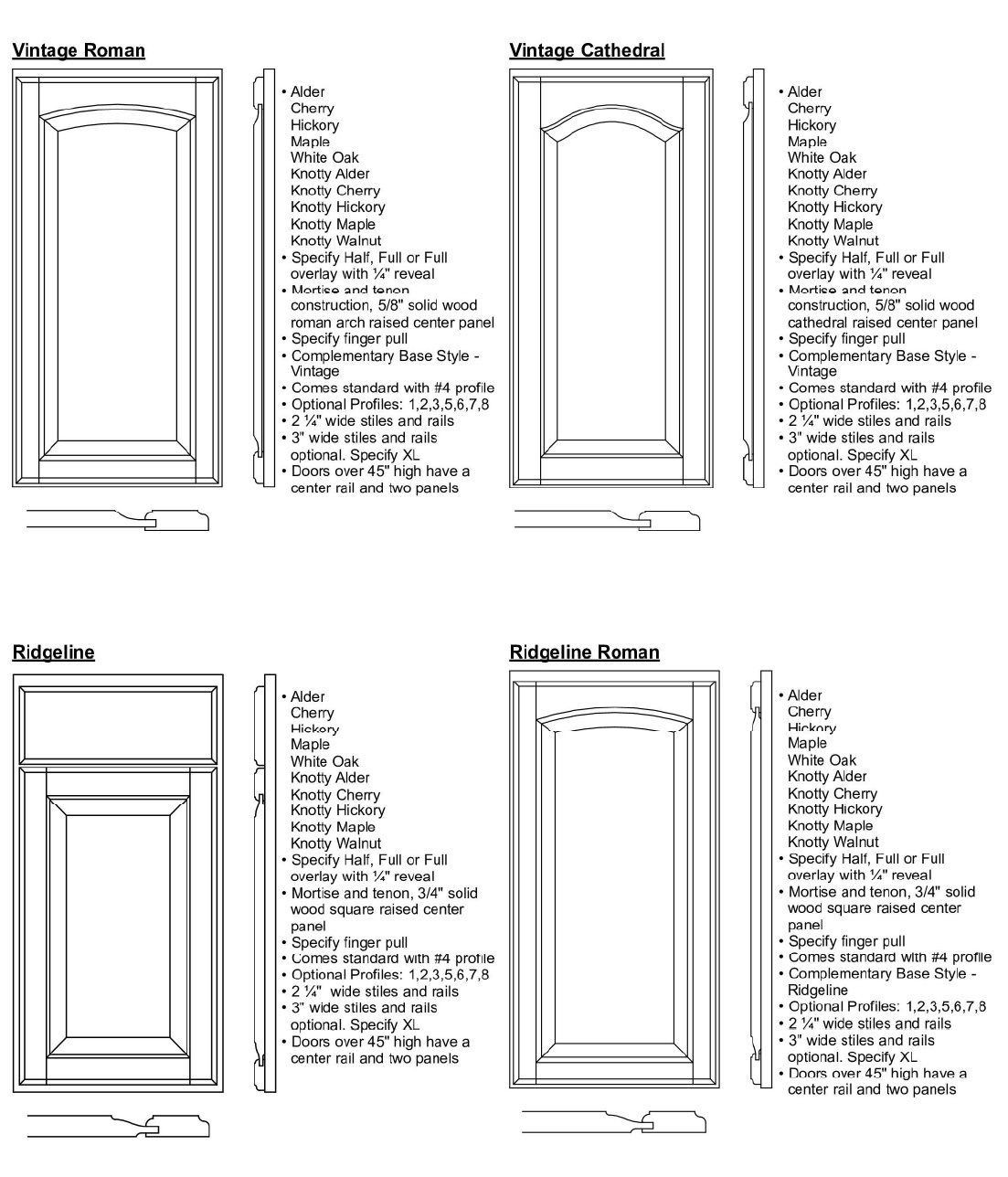

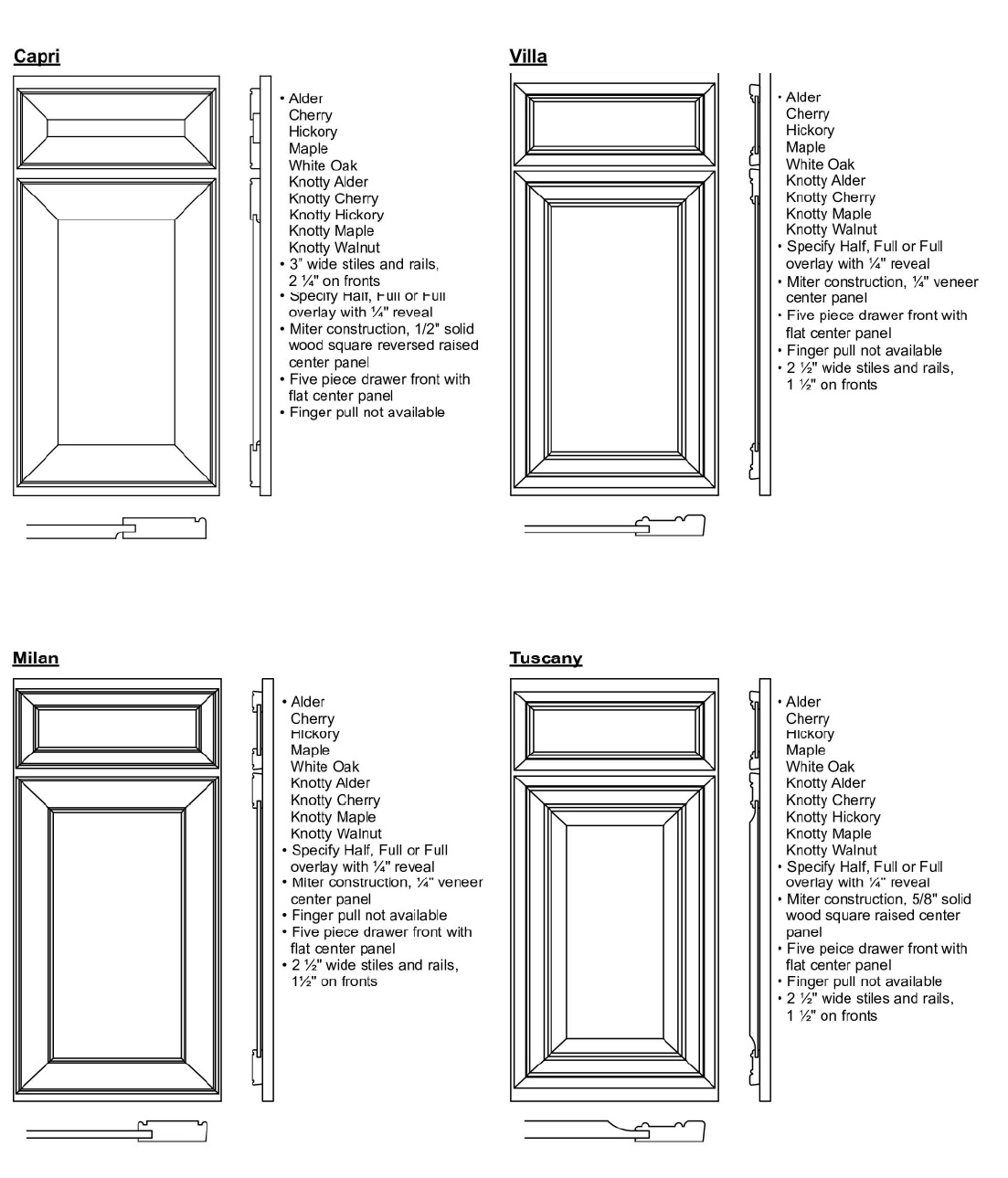

Door Specifications

Door Specification Notes

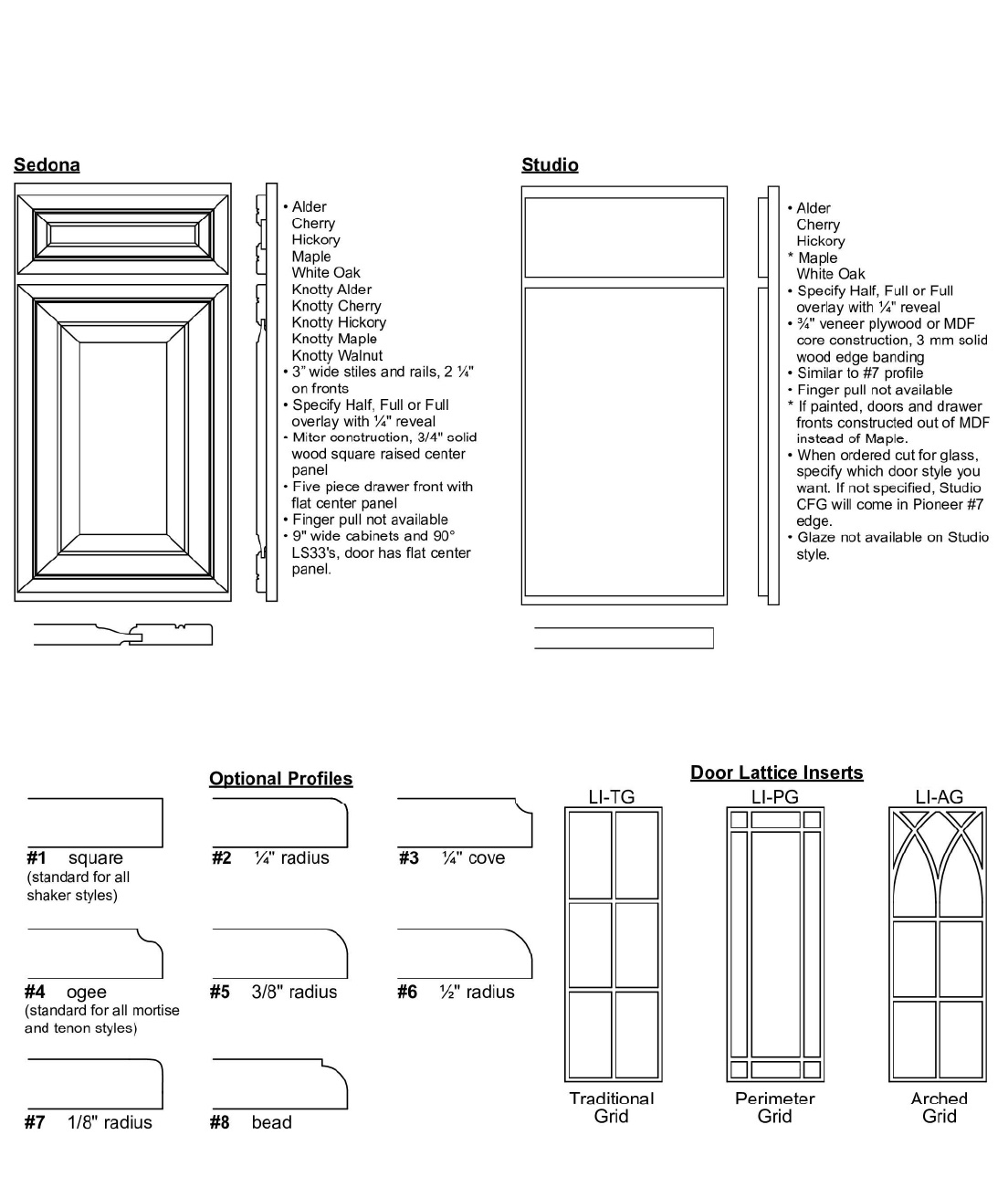

  • Outer edge profile options available on motise and tenon constructed doors. Available profiles 1 - 8. (see above) The best option when using glaze on the traditional styles is #8.
  • On arched door styles, wall cabinets and top door on tall cabinets will be arched, base cabinets will be square unless specified otherwise, and will incur an upcharge.

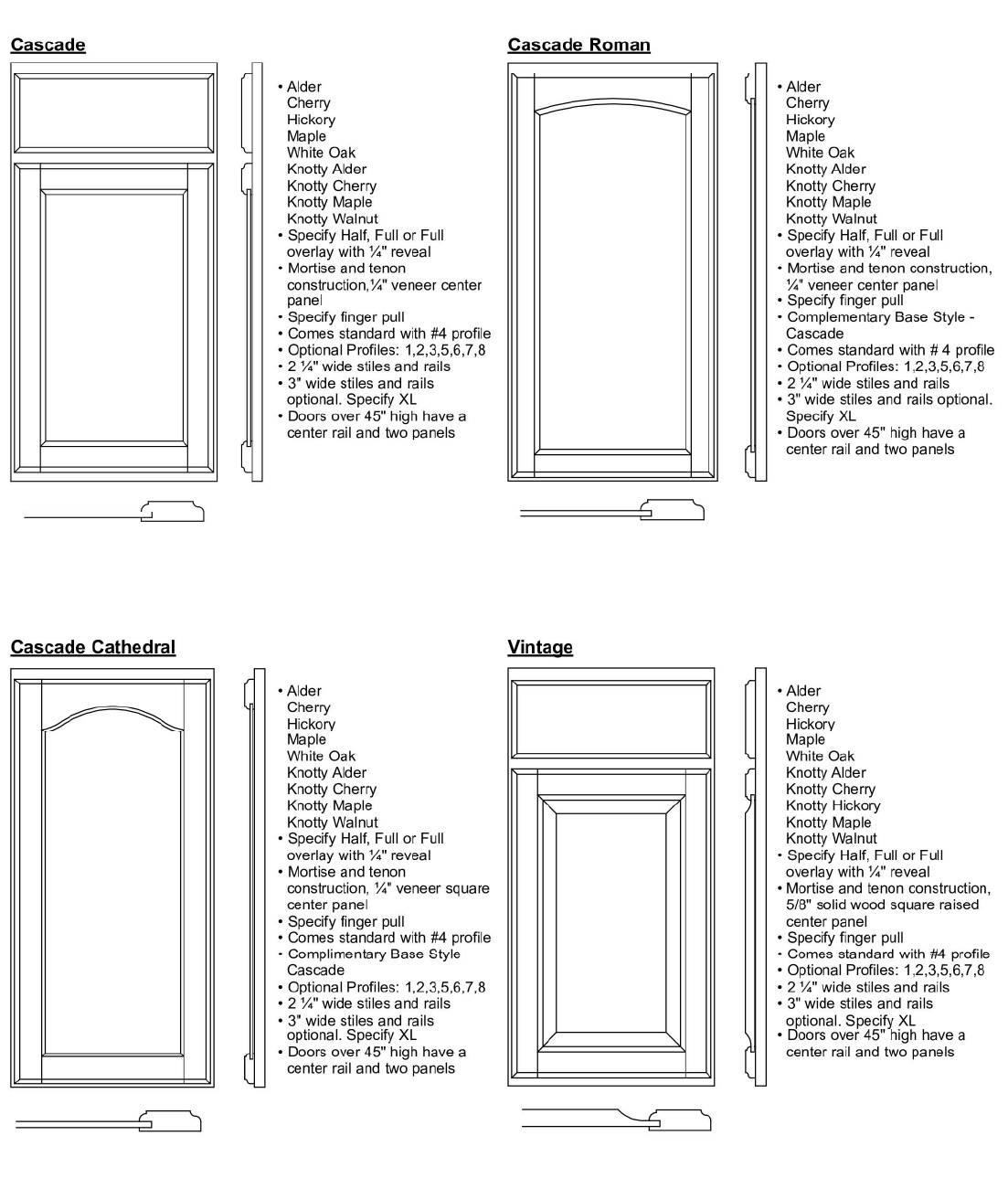

  • Mortise and tenon constructed doors on cabinets 48" high and higher, Wall Drawer cabinets 54" high to 60" high, and the bottom taller door on utility and pantry cabinets have a center rail with double center panels.
  • The 6 way cam adjustable, soft close (Crown line only) hinges make it easy to keep your doors aligned and working properly and have a lifetime warranty from the manufacturer.

Available Door Modifications

  • All mortise and tenon and miter five piece doors may be cut for glass (CFG).
  • Thermofoil doors may be be cut for glass (CFG) or lattice (LD) added.
  • Door lattice inserts available on all wood doors.
  • Five piece drawer fronts available on Pioneer, Shaker, Millcreek, Clearcreek, and Bigcreek door styles.
  • Butt Door (BD) option available on all doors 24" wide and wider. Upcharges apply on 39" wide and wider.
  • Loose Mullion Doors option available.
  • Arched base cabinet doors.

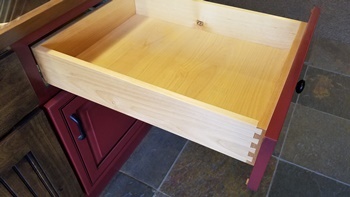

Drawer Specifications

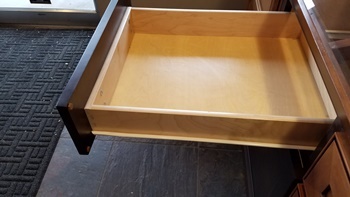

Crown Line standard drawer box is ½" thick dovetailed baltic birch plywood construction with a ¼" plywood bottom held captive by the epoxy coated steel side mount glides. This system has a 75 lb rating and a lifetime warranty on the hardware. Approximately 7/8 extension. Pro Line upgrade option.



Baltic Crown Line Drawer Upgrade is 5/8" thick dovetailed baltic birch plywood construction with a ¼" plywood bottom held captive by dado in the drawer sides, front and back. Undermount full extension drawer hardware has a 100 lb rating and a lifetime warranty on the hardware. Pro Line upgrade option.



Crown Drawer Upgrade Plus is 5/8" thick solid dovetail alder construction with a ¼" plywood bottom held captive by the dado in the drawer sides, front and back. Premium undermount full extension drawer hardware has a 100 lb rating and a lifetime warranty on the hardware.
